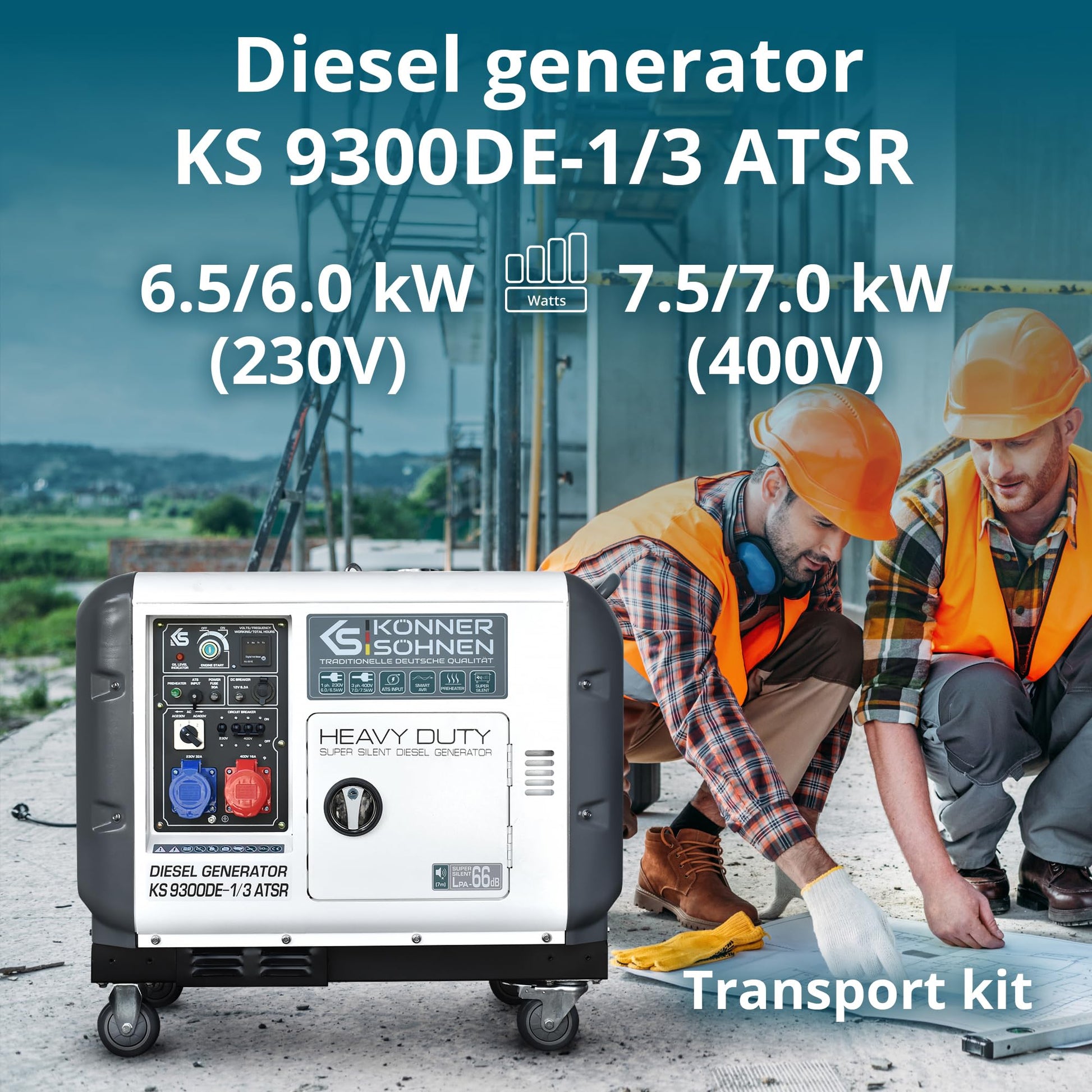

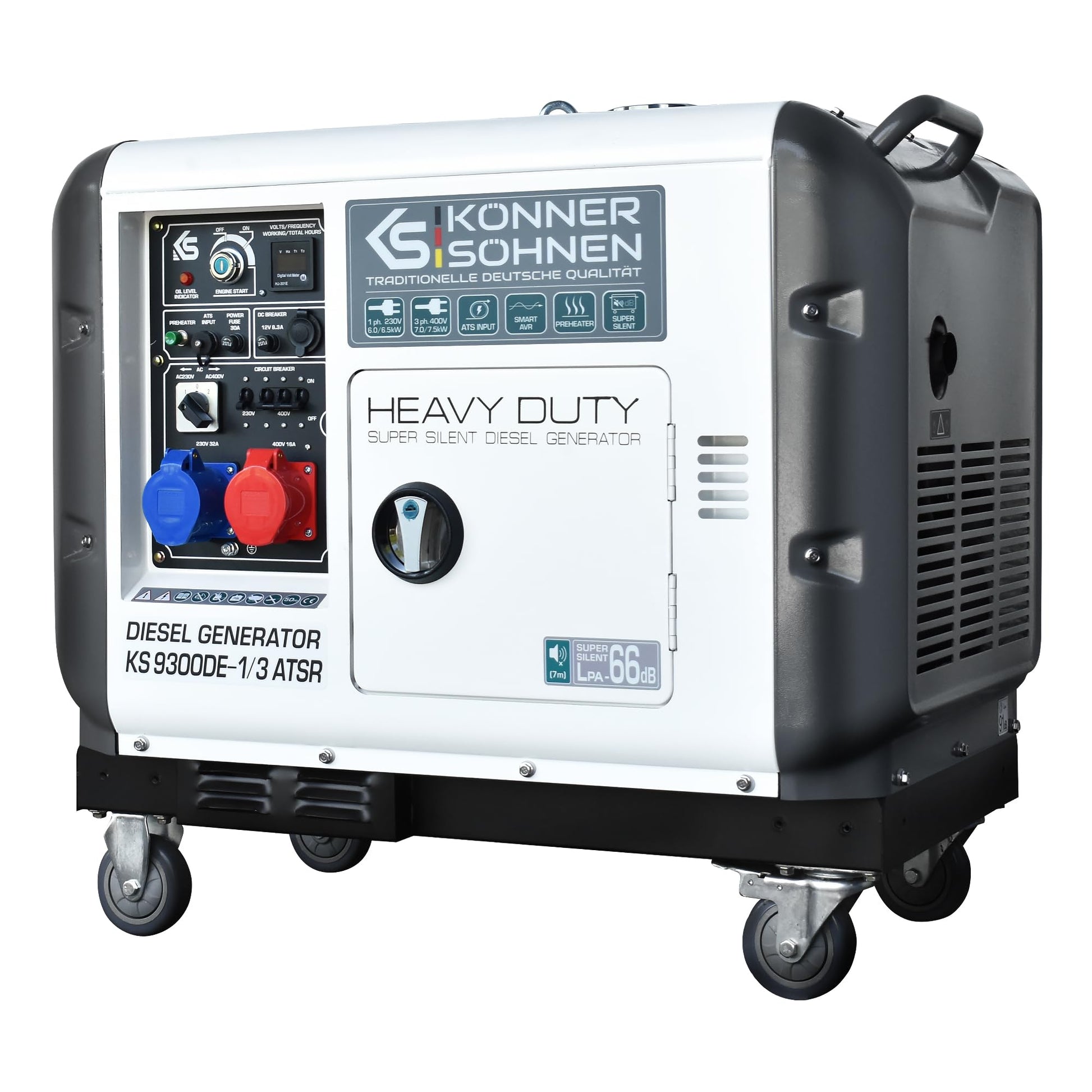

KS 9300DE-1/3 ATSR, diesel emergency generator 7500 W (400 V) / 6500 W (230 V), VTS phase switching system, diesel power generator EURO 5, LED display, air preheater, ATS connection

Brand: K&S Könner&Söhnen

Color: 9300de-1/3 Atsr

Features:

• The diesel generator is equipped with a vandal-proof housing with better heat distribution inside, which ensures a longer service life of the device.
• Unique innovative VTS phase switching system allows the generator to be used either in three-phase (400V) or single-phase mode (230V) almost without loss of power.
• The diesel generator can be operated with an external ATS unit. It is equipped with a 6-pin connector socket that allows the generator to automatically turn on and off and maintain battery charge status in standby mode.

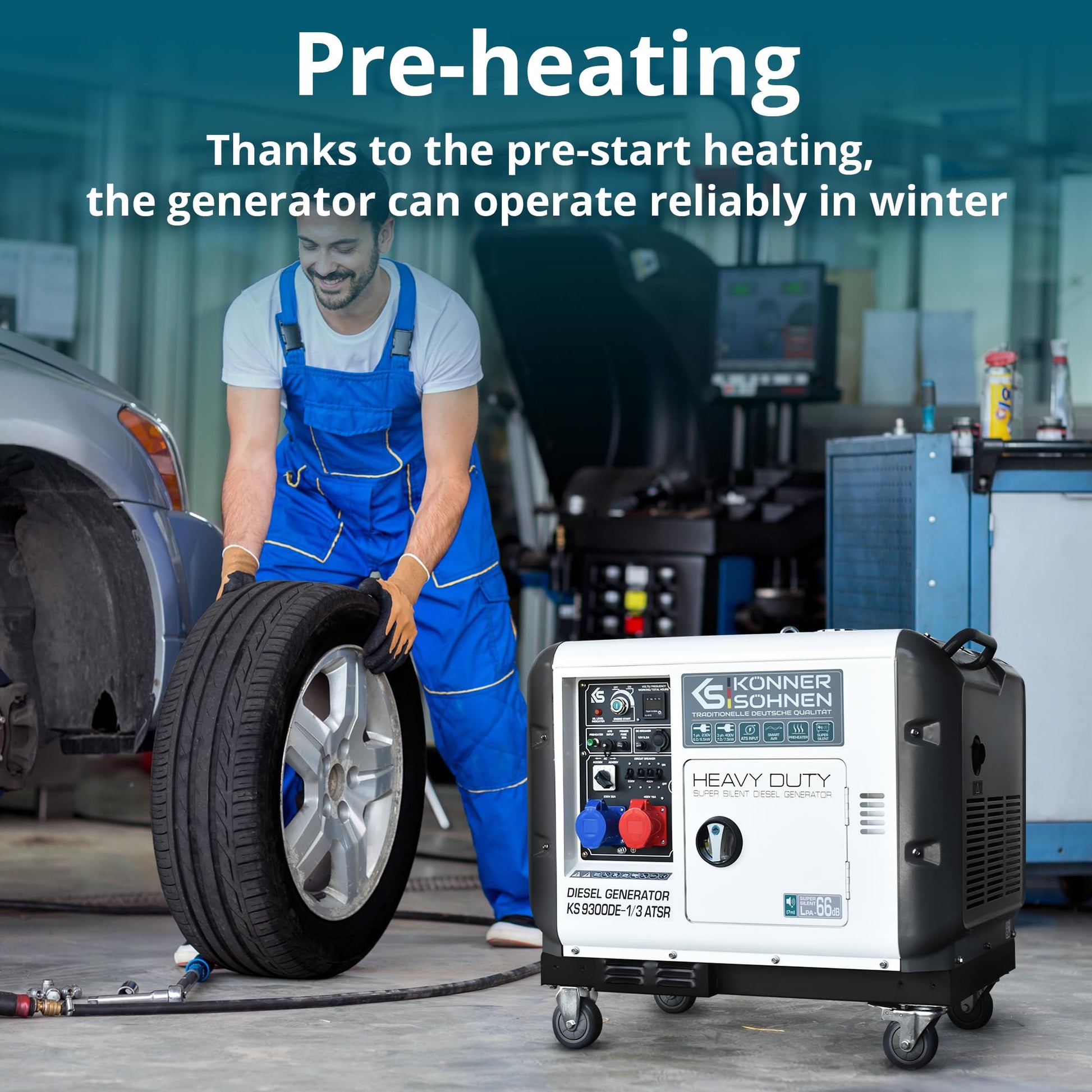

• The air pre-heater ensures an effortless start of the diesel power generator in the cold season.
• Ergonomic control panel of the generator allows easy operation of the diesel generator including the LED display (voltage, frequency, operating hour), overload and short circuit protection, low oil indicator, sockets, earth screw, 12 V terminals, etc.
• The & S company motor meets European quality standards, including the new exhaust standard Euro 5, and is equipped with an individual serial number with which we can monitor the production and service quality.

model number: KS 9300DE-1/3 ATSR

Details: The KS 9300DE-1/3 ATSR diesel generator from the Heavy Duty series from the German brand "Könner & Söhnen" is ideal for emergency power supply. The generator is equipped with a vandal-proof housing, which allows this model to be used in small shops, cafes, restaurants and especially in private homes as an emergency power source. The generator is equipped with a 6-pin connection socket for connecting an automatic mains switching device, which allows automatic starting of the generator when the mains power is interrupted. The life of the engine is approx. 3000 operating hours, which is confirmed by multi-stage testing and a warranty. The reliable motor of the brand "Könner & Söhnen" meets all European quality standards Euro 5. The air preheater allows you to effortlessly start the generator in the cold season. We offer our customers and business partners a comprehensive after-sale service and an international warranty.
Engine specifications:
Model of the engine: Könner & Söhnen KS 520HD-V
Engine type: Könner & Söhnen four-stroke diesel engine with air cooling.
Engine size: 498 cm3.
Motor power: 18.0 HP.
Fuel type: diesel according to DIN EN 590.
Fuel tank volume: 15 L.
Engine oil capacity: 1.65 L
Running time at load 50%: 8.3 hours.
Sound level Lpa (at 7 m)/Lwa: 66/91 dB
Generator specifications:
Maximum / rated power (400 V): 7.5/7.0 kW.
Maximum / rated power (230 V): 6.5/6.0 kW.
Rated voltage: 230/400 V.
Frequency: 50Hz
Current (max. ): 28.26 (230 V) / 13.54 (400 V).
Starter: electric.
Sockets: 1 x CEE 400 V 16 A, 1 x CEE 230 V 32 A.
12 V connection for charging external batteries (as an emergency solution).
Battery charging cable.
Net dimensions (L x W x H): 920 x 580 x 860 mm.
Gross dimensions (L x W x H): 940 х 600 х 880 mm
Net weight: 168 kg.
Gross weight: 180 kg.

Package Dimensions: 37.0 x 34.6 x 23.6 inches
